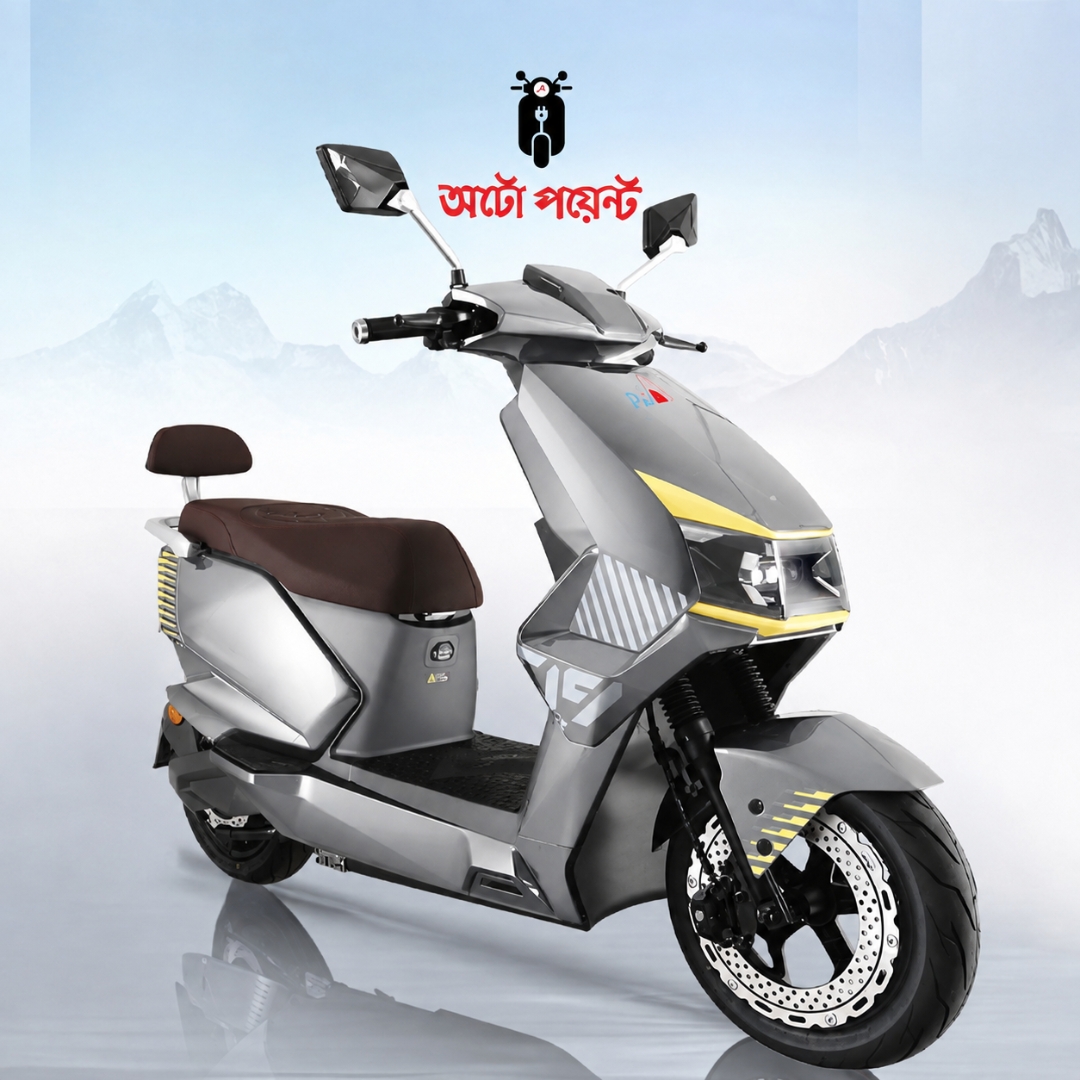

এই 10 Inch Electric Bike তৈরি করা হয়েছে দৈনন্দিন commuting-এর জন্য প্রয়োজনীয় performance, stability এবং comfort একসাথে দেওয়ার জন্য। এর 2000W motor এবং 72V 35Ah Lead-Acid Battery combination scooter-টিকে দেয় strong performance এবং reliable riding experience।
সর্বোচ্চ 60 KM/H speed এবং ≥50 KM riding range থাকায় এটি city riding ও regular transportation-এর জন্য একটি practical electric mobility solution।
এর পাশাপাশি Front & Rear Disc Brake, 110/70-12 front tyre এবং 3.5-10 rear tyre riding-এর সময় braking control ও road stability বাড়াতে সহায়তা করে।
Key Features
- 2000W Powerful Motor
- 72V 35Ah Lead-Acid Battery
- Up to 60 KM/H Top Speed
- ≥50 KM Riding Range
- Front & Rear Disc Brake
- Front 110/70-12 Tyre
- Rear 3.5-10 Tyre
- 150 Nm Maximum Torque
- 550±10 r/min Motor Speed
- 6.5 m Turning Radius
- 120 mm Ground Clearance
- Handbrake System
- 89V / 4.5A Charger
Technical Specifications
Performance & Dimensions
| Specification | Details |
|---|---|
| Vehicle Type | 10 Inch Electric Scooter |
| Overall Dimensions | 1840×720×1110 mm |
| Wheelbase | 1320 mm |
| Top Speed | 60 Km/h |
| Riding Range | ≥50 Km |
| Acceleration | 17s |
| Turning Radius | 6.5 m |
| Gradeability | 8–15° |
| Ground Clearance | 120 mm |
| Lighting | 4000 cd |
| Steering Angle | Left 43° / Right 44° |
Motor
| Specification | Details |
|---|---|
| Motor Power | 2000 W |
| Motor Voltage | 72 V |
| Motor Speed | 550±10 r/min |
| Maximum Torque | 150 Nm |
Battery
| Specification | Details |
|---|---|
| Battery Type | Lead-acid Battery |
| Battery Voltage | 72 V |
| Battery Capacity | 35 Ah |
Braking & Tyres
| Specification | Details |
|---|---|
| Brake Type | Handbrake |
| Brake System | Front and rear disc |
| Front Tyre | 110/70-12 |
| Rear Tyre | 3.5-10 |
Controller
| Specification | Details |
|---|---|
| Controller Voltage | 63±1 V |
| Controller Current | 55±2 A |
Charger
| Specification | Details |
|---|---|
| Charging Voltage | 89 V |
| Charging Current | 4.5 A |
| Plug | AC220V Bengal plug |
| DC Output | 72V 3.0A |
| Label | English label, without Chinese characters |
Additional Configuration
- Dimension: 1750570860 mm
- Weight: 131 Kg
- Weight: 114 Kg
- Weight: 73 Kg
- Battery: 72V20 Ah
